If you work in industrial automation or factory data integration, you’ve likely run into a frustrating, silent wall: the duplicate IP dilemma.
Picture this: You are tasked with connecting a workshop full of identical production machines to a centralized Manufacturing Execution System (MES) or an Industrial IoT platform. You open the network cabinets, only to find that every single PLC equipment manufacturer delivered their machinery configured with the exact same default IP address (e.g., 192.168.1.10). The automation vendors won’t disclose or let you modify the internal PLC programs to change those IPs.
Suddenly, your smart factory initiative is dead in the water because you can’t plug identical IP addresses into the same network switches without causing massive IP conflicts.

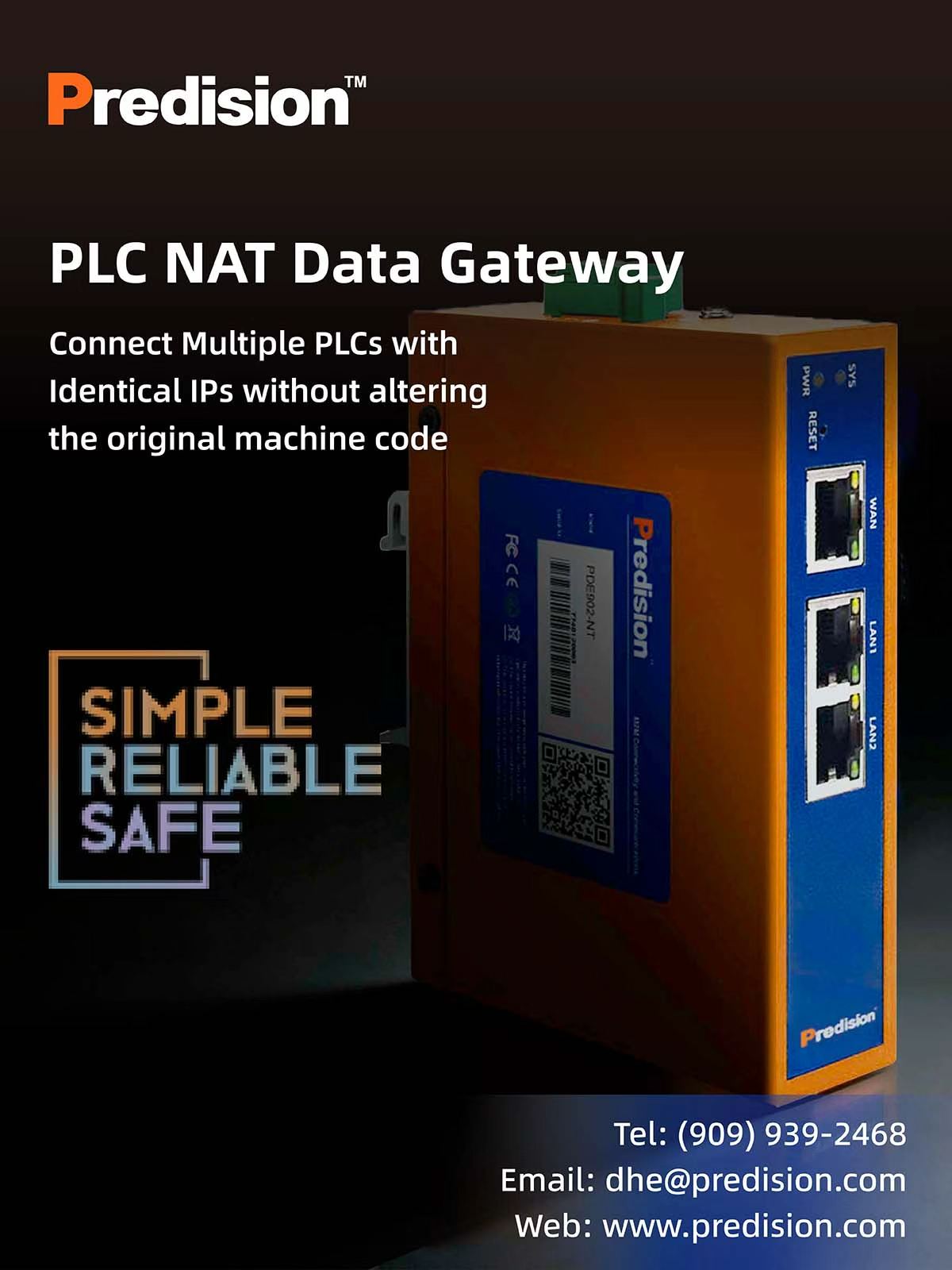

Enter the hero of the industrial shop floor: the PDE902-NT PLC NAT Data Gateway.
The Hero’s Mission: Unifying the Shop Floor Without Changing a Line of Code
The PDE902-NT doesn’t ask you to risk rewriting PLC code or disrupting active production lines. Instead, it acts as an intelligent, protocol-transparent translator sitting directly between your machines and your higher-level systems.
By utilizing advanced Network Address Translation (NAT) and cross-subnet routing, the PDE902-NT opens up completely new network segments. It maps those identical, conflicting internal PLC IP addresses to unique, distinct IP addresses on the factory’s main wide-area network (WAN).
The result? Your MES sees distinct data streams, your PLCs remain completely untouched, and your factory integration project is back on track.
Why the PDE902-NT Outperforms the Competition
The PDE902-NT isn’t just a simple router; it is a purpose-built industrial component engineered for complex data acquisition environments.
1. Zero Impact on Normal Operations
A major worry for any control engineer is network overhead slowing down real-time machine operations. The PDE902-NT safely increases the communication interfaces to external applications, allowing you to extract internal PLC data over TCP/UDP without affecting the machine’s critical, everyday performance.
2. Built for Industrial Hostility
Consumer- or commercial-grade network gear will fail on a factory floor. The PDE902-NT is encased in a rugged, fanless IP40 metal enclosure designed to withstand extreme thermal environments, operating seamlessly from -40°C up to 75°C
3. High-Speed, Isolated Hardware Architecture
- Gigabit Networking: Features 1 Auto-Sensing Gigabit WAN port and 2 Gigabit Ethernet LAN ports, ensuring high-throughput data transfer.
- Electrical Safety: The LAN ports are equipped with 1.5 KV electromagnetic isolation protection to guard your sensitive PLC networks against ground loops and industrial electrical surges.
- Power Resiliency: Features a wide 9-48 VDC power input range with terminal block reverse polarity and overload protection.
Under the Hood: Technical Blueprint
Don’t let its compact 30mm x 125mm x 90mm DIN-rail form factor fool you—the PDE902-NT packs robust, enterprise-grade processing capabilities:
| Specification | Details |
| Processor | 880 MHz 32-bit CPU |
| Memory & Storage | 256 MB DRAM / 16 MB NOR Flash |
| Operating System | Deeply customized, hardened Linux platform |
| Port Configuration | 3 Ports (1 x WAN, 2 x LAN) supporting simultaneous static/dynamic configurations |
| Diagnostics Tools | Integrated Web-based Ping and Tracert for fast troubleshooting |
Conclusion: Stop Rewriting Code, Start Integrating
The duplicate IP problem is an unnecessary bottleneck in the era of smart manufacturing. Rather than wasting hundreds of engineering hours fighting with machine vendors or attempting risky PLC program alterations, the PDE902-NT PLC NAT Data Gateway solves the issue right at the hardware layer.
It provides the necessary bridge to open up your isolated machine data safely, securely, and seamlessly.
